CSKPR12CA-12

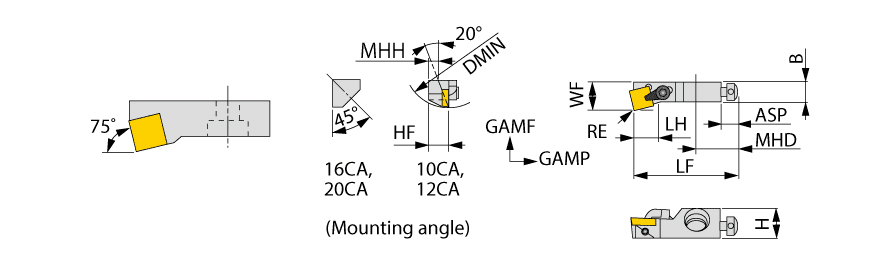

Turning Toolholder; 58.06 mm OAL × 19.5 mm Shank Height × 15 mm Shank Width × 17 mm LH ; Right Hand ; Steel
| Shank Height (H) | 19.5 mm | Master Insert Identification (MIID) | SPGN120308 |
| Shank Width (B) | 15 mm | Application | | Cartridges | |
| Overall Length (OAL) | 58.06 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Functional Length (LF) | 55 mm | Rake Angle Radial (GAMF) | 2 Degrees |
| Head Length (LH) | 17 mm | Body Material | Steel |
| Functional Width (WF) | 20 mm | Tool Type | Adapter Turning Tools |
| Minimum Bore Diameter (DMIN) | 50 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Clamp on cartridge with 75deg approach angle for 11deg clearance square insert | Country of Origin | JAPAN |
| Remarks | The left hand insert is used for the right hand cartridge and right hand insert is used for left hand cartridge. |
Shipping Info
Package Weight
0.273
