PPXOL206-HF
Turning Toolholder; 7″ OAL × 1-1/4″ Shank Height × 1-1/4″ Shank Width × 1-1/2″ LH ; Left Hand ; Steel

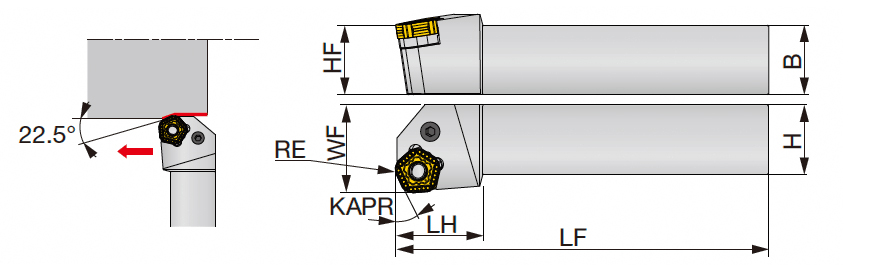

| Shank Height (H) | 1-1/4″ | Master Insert Identification (MIID) | POMG 643 MNW |
| Shank Width (B) | 1-1/4″ | Application | | For Heavy Turning | |
| Overall Length (OAL) | 7″ | Rake Angle Axial (GAMP) | -8.5 Degrees |
| Functional Length (LF) | 7″ | Rake Angle Radial (GAMF) | -2.5 Degrees |
| Head Length (LH) | 1-1/2″ | Body Material | Steel |
| Functional Width (WF) | 1.51″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | Lever lock type toolholder with 22.5deg approach angle for pentagonal inserts | Country of Origin | JAPAN |
| Remarks | Note: Since the corner angle of TurnTenFeed insert is 108 deg, the workpiece corner may require additional post process to remove stock to achieve a right angle. |
Shipping Info
Package Weight
0.000
