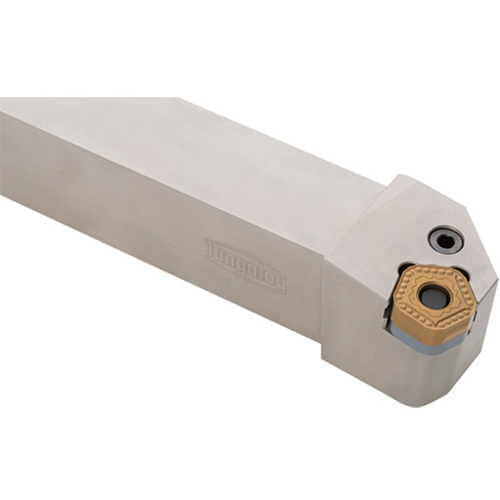

PPXOL2525M11-HF

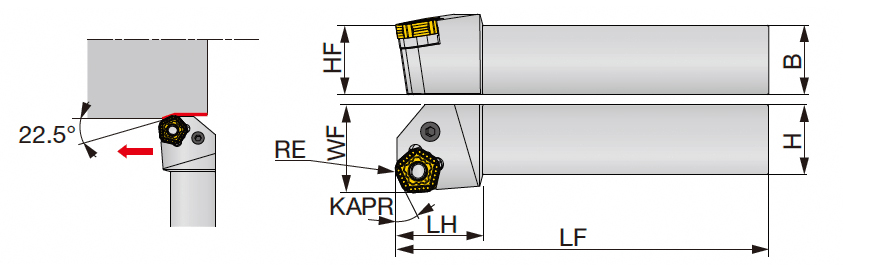

Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 35 mm LH ; Left Hand ; Steel
| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | POMG110612-MNW |
| Shank Width (B) | 25 mm | Application | | For Heavy Turning | |
| Overall Length (OAL) | 150 mm | Rake Angle Axial (GAMP) | -8.5 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | -2.5 Degrees |
| Head Length (LH) | 35 mm | Body Material | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
Product Features
| Family Description | Lever lock type toolholder with 22.5deg approach angle for pentagonal inserts | Country of Origin | JAPAN |
| Remarks | Note: Since the corner angle of TurnTenFeed insert is 108 deg, the workpiece corner may require additional post process to remove stock to achieve a right angle. |
