JSCL2CR083X-CHP

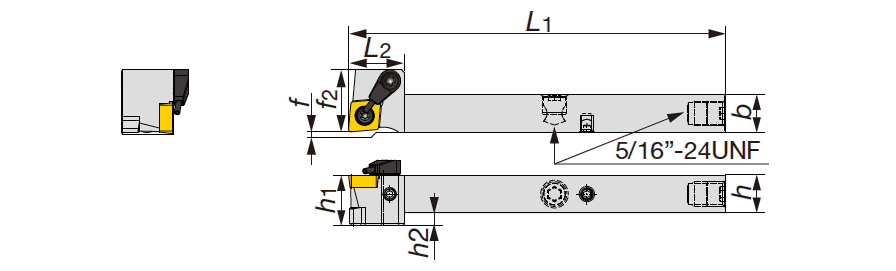

Turning Toolholder; 4-3/4″ OAL × 1/2″ Shank Height × 1/2″ Shank Width × 0.709″ LH ; Right Hand ; Steel
| Shank Height (H) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 1/2″ | Master Insert Identification (MIID) | CCGT32.50.5 |
| Overall Length (OAL) | 4-3/4″ | Application | | For 80deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 4-3/4″ | Body Material | Steel |
| Head Length (LH) | 0.709″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 0″ | Measurement Type | Inch |
Product Features
| Family Description | No-offset Screw-on toolholder for positive 80 deg rhombic inserts, with high pressure coolant channels. Compatible to the direct internal coolant supply system without the use of external coolant hose. | Country of Origin | JAPAN |
| Remarks | The right hand insert (R) is used for the left hand toolholders (L), and the left hand insert (L) is used for the right hand toolholders (R). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.000
