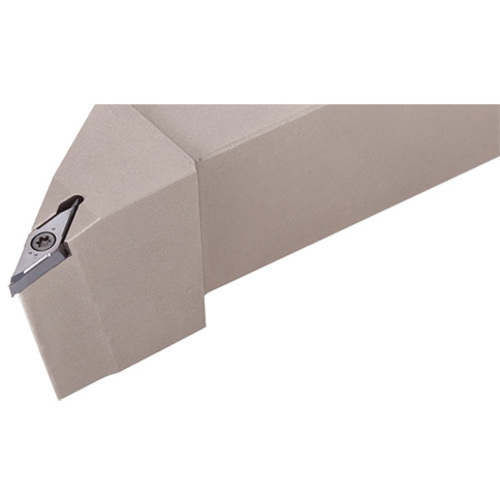

JSVJXL127
Turning Toolholder; 4-1/2″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 1-1/2″ LH ; Left Hand ; Steel

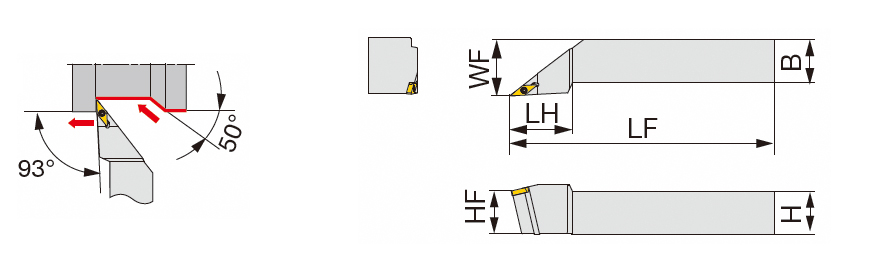

| Shank Height (H) | 3/4″ | Master Insert Identification (MIID) | VXGU73.51R |
| Shank Width (B) | 3/4″ | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Overall Length (OAL) | 4-1/2″ | Rake Angle Axial (GAMP) | -13 Degrees |
| Functional Length (LF) | 4-1/2″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 1-1/2″ | Body Material | Steel |
| Functional Width (WF) | 1″ | Tool Type | TOOLHOLDERS - FOR EXTERNAL TURNING AND FACING |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | Screw-on toolholder with 93deg approach angle for VXGU inserts | Country of Origin | JAPAN |
| Remarks | Right hand toolholders (R) are used with left hand inserts (L). Left hand toolholders (L) are used with right hand inserts (R). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.000
