JSDJXR162

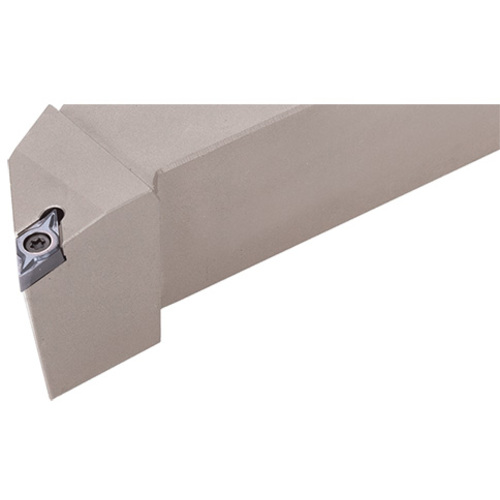

Turning Toolholder; 6″ OAL × 1″ Shank Height × 1″ Shank Width × 1-1/8″ LH ; Right Hand ; Steel

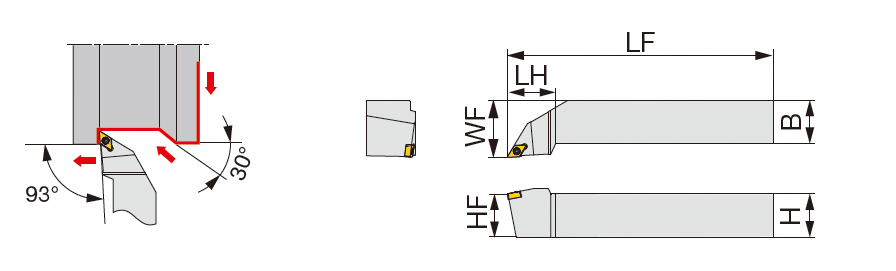

| Shank Height (H) | 1″ | Master Insert Identification (MIID) | DXGU221L |
| Shank Width (B) | 1″ | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Overall Length (OAL) | 6″ | Rake Angle Axial (GAMP) | -11 Degrees |
| Functional Length (LF) | 6″ | Rake Angle Radial (GAMF) | -1 Degrees |
| Head Length (LH) | 1-1/8″ | Body Material | Steel |
| Functional Width (WF) | 1-1/4″ | Tool Type | TOOLHOLDERS - FOR EXTERNAL TURNING AND FACING |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Screw-on toolholder with 93deg approach angle for DX*U inserts | Country of Origin | Japan |
| Remarks | Right hand toolholders (R) are used with left hand inserts (L). Left hand toolholders (L) are used with right hand inserts (R). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.915
