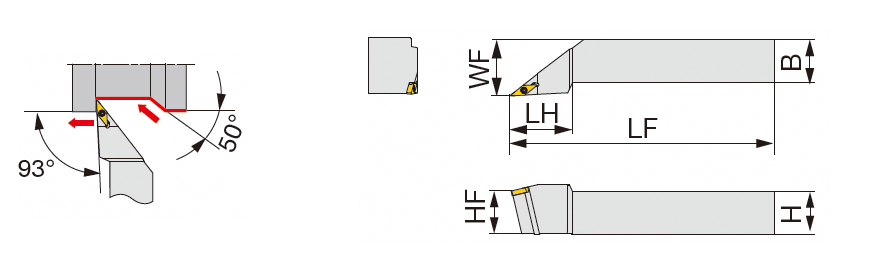

JSVJXR2020K09
Turning Toolholder; 125 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 35 mm LH ; Right Hand ; Steel
| Shank Height (H) | 20 mm | Master Insert Identification (MIID) | VXGU09T204L |
| Shank Width (B) | 20 mm | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Overall Length (OAL) | 125 mm | Rake Angle Axial (GAMP) | -13 Degrees |
| Functional Length (LF) | 125 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 35 mm | Body Material | Steel |
| Functional Width (WF) | 25 mm | Tool Type | TOOLHOLDERS - FOR EXTERNAL TURNING AND FACING |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
Product Features
| Family Description | Screw-on toolholder with 93deg approach angle for VXGU inserts | Country of Origin | JAPAN |
| Remarks | Right hand toolholders (R) are used with left hand inserts (L). Left hand toolholders (L) are used with right hand inserts (R). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.000
