JSWLXR2525M04

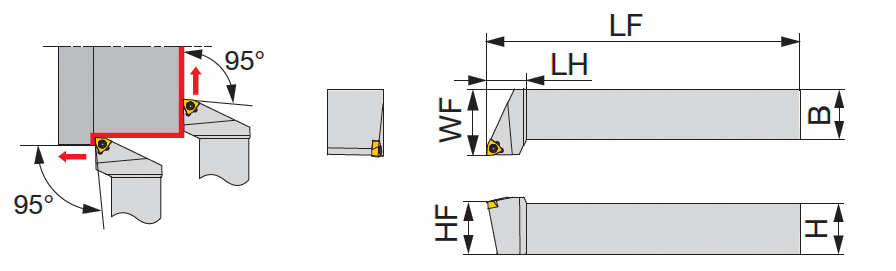

Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 19 mm LH ; Right Hand ; Steel
| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | WXGU040304L |
| Shank Width (B) | 25 mm | Application | | For 80deg Trigon insert | For Miniature machining | |
| Overall Length (OAL) | 150 mm | Rake Angle Axial (GAMP) | -11 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | -1 Degrees |
| Head Length (LH) | 19 mm | Body Material | Steel |
| Functional Width (WF) | 32 mm | Tool Type | TOOLHOLDERS - FOR EXTERNAL TURNING AND FACING |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
Product Features
| Family Description | Screw-on toolholder with 95deg approaach angle for WXG* inserts | Country of Origin | JAPAN |
| Remarks | Right hand toolholders (R) are used with left hand inserts (L). Left hand toolholders (L) are used with right hand inserts (R). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.000
