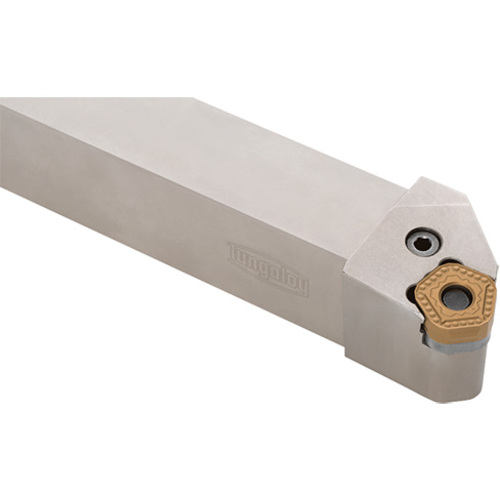

PPXOR3232P13-HD
Turning Toolholder; 170 mm OAL × 32 mm Shank Height × 32 mm Shank Width × 40 mm LH ; Right Hand ; Steel

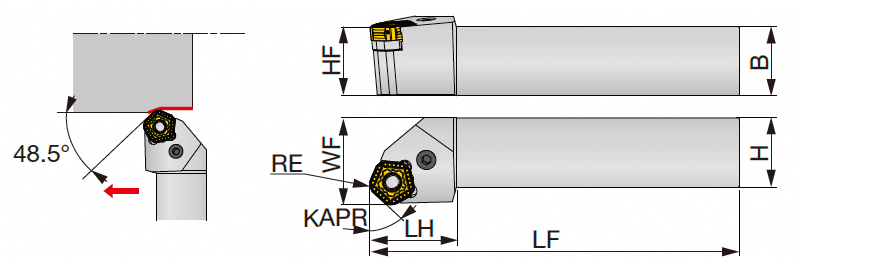

| Shank Height (H) | 32 mm | Master Insert Identification (MIID) | POMG130612-MNW |
| Shank Width (B) | 32 mm | Application | | For Heavy Turning | |
| Overall Length (OAL) | 170 mm | Rake Angle Axial (GAMP) | -5 Degrees |
| Functional Length (LF) | 170 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Head Length (LH) | 40 mm | Body Material | Steel |
| Functional Width (WF) | 40 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
Product Features
| Family Description | Lever lock type toolholder with 48.5deg approach angle for pentagonal inserts | Country of Origin | JAPAN |
| Remarks | Note: Since the corner angle of TurnTenFeed insert is 108 deg, the workpiece corner may require additional post process to remove stock to achieve a right angle. |
Shipping Info
Package Weight
0.000
