C3SCLCR11070-09

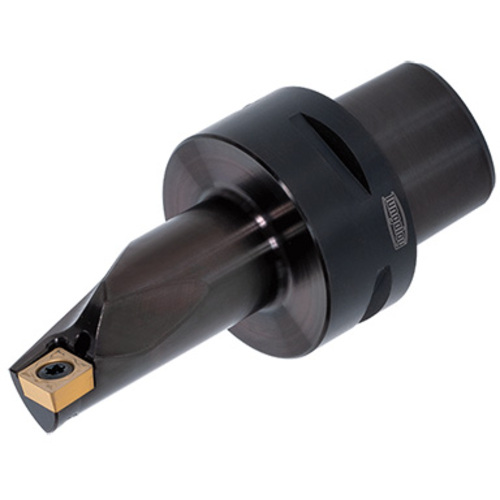

Turning Toolholder; 3.504″ OAL × 1.26″ Shank Dia. ; Right Hand ; Steel

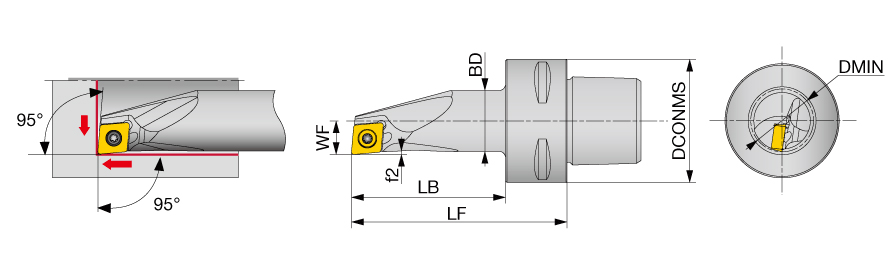

| Overall Length (OAL) | 3.504″ | Master Insert Identification (MIID) | CCMT32.52 |
| Functional Length (LF) | 2.756″ | Application | | Face contact interface | For 80deg Rhombic insert | |
| Functional Width (WF) | 0.433″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Tool Type | Tapered Shank Turning Tools |
| Minimum Bore Diameter (DMIN) | 0.866″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | TungCap Screw-on boring bar for posi 80 deg rhombic insert with 7 deg clearance | Country of Origin | JAPAN |
| Remarks | Use right hand toolholders (R) with left hand inserts (L). Applicable for 7 MPa coolant. |
Shipping Info
Package Weight
0.000
