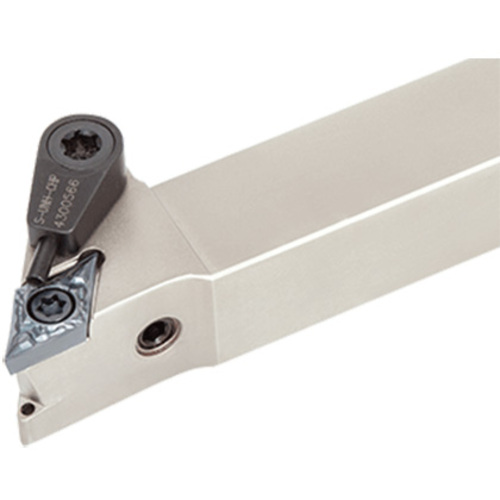

JSDJ2CR1212X11-CHP

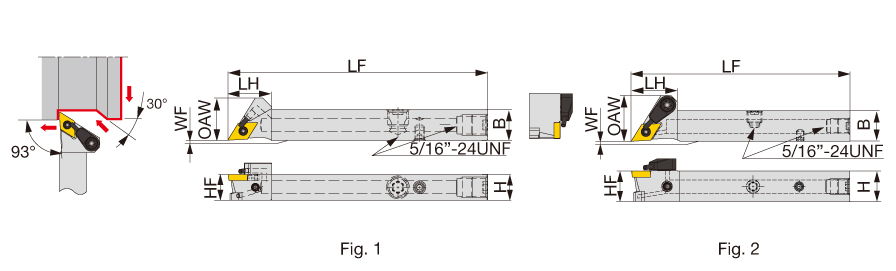

Turning Toolholder; 120 mm OAL × 12 mm Shank Height × 12 mm Shank Width × 19 mm LH ; Right Hand ; Steel
| Shank Height (H) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 12 mm | Master Insert Identification (MIID) | DCGT11T302 |
| Overall Length (OAL) | 120 mm | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 120 mm | Body Material | Steel |
| Head Length (LH) | 19 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 0 mm | Measurement Type | Metric |
Product Features
| Family Description | No-offset Screw-on toolholder for positive 55 deg rhombic inserts, with high pressure coolant channels. Compatible to the direct internal coolant supply system without the use of external coolant hose. | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.359
