AVVNN162.33-A

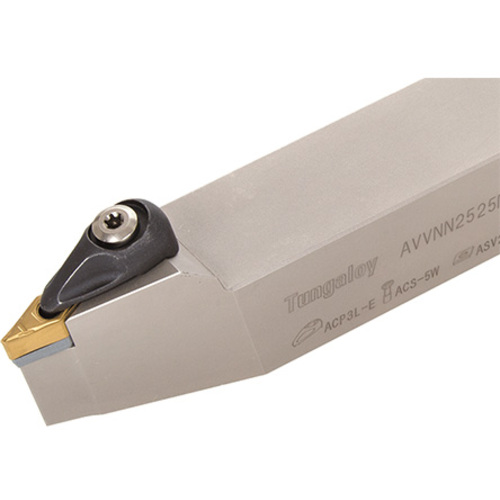

Turning Toolholder; 6″ OAL × 1″ Shank Height × 1″ Shank Width × 1-1/2″ LH ; Neutral ; Steel

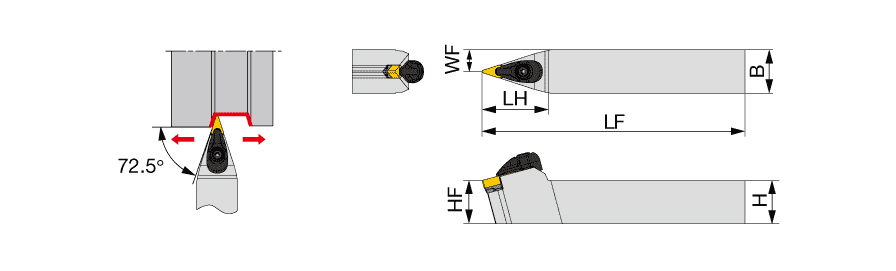

| Shank Height (H) | 1″ | Cutting Direction (HAND) | Neutral |
| Shank Width (B) | 1″ | Master Insert Identification (MIID) | VNMG2.332E |
| Overall Length (OAL) | 6″ | Application | | For 35deg Rhombic insert | |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1-1/2″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1/2″ | Measurement Type | Inch |
Product Features
| Family Description | Double-clamp toolholders with 72.5deg approach angle for negative 35deg rhombic inserts VN**2.33... | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
1.576
