AVQNR122.33-A

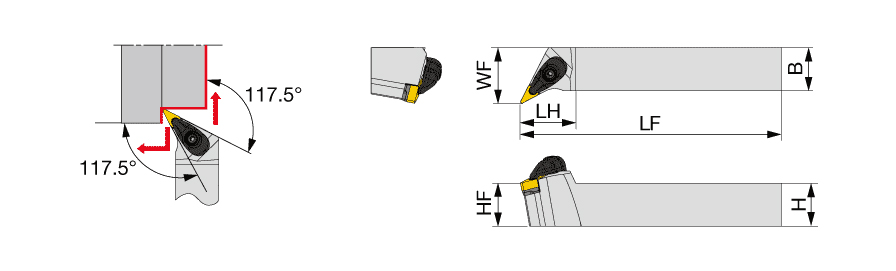

Turning Toolholder; 4-1/2″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 1-1/4″ LH ; Right Hand ; Steel
| Shank Height (H) | 3/4″ | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 3/4″ | Master Insert Identification (MIID) | VNMG2.332E |
| Overall Length (OAL) | 4-1/2″ | Application | | For 35deg Rhombic insert | |
| Functional Length (LF) | 4-1/2″ | Body Material | Steel |
| Head Length (LH) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1″ | Measurement Type | Inch |
Product Features
| Family Description | Double-clamp toolholders with 117.5deg approach angle for negative 35deg rhombic inserts VN**2.33... | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.807
