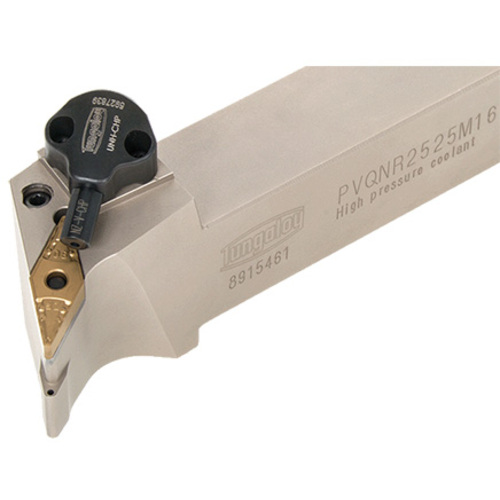

PVQNR163-CHP
Turning Toolholder; 6″ OAL × 1″ Shank Height × 1″ Shank Width × 1.688″ LH ; Right Hand ; Steel

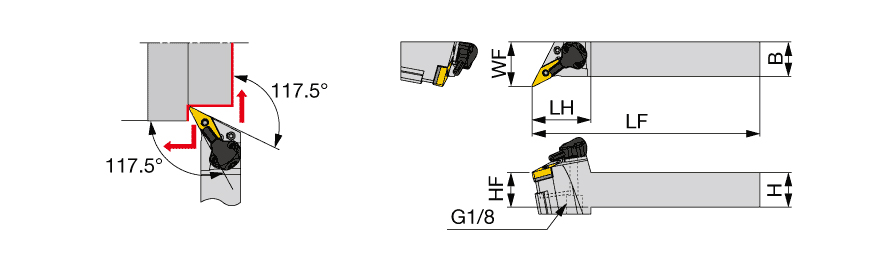

| Shank Height (H) | 1″ | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 1″ | Master Insert Identification (MIID) | VNMG332 |
| Overall Length (OAL) | 6″ | Application | | For 35deg Rhombic insert | |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.688″ | Measurement Type | Inch |
| Functional Width (WF) | 1-1/4″ |
Product Features
| Family Description | Lever lock type toolholder with 117.5 deg approach angle, for negative 35 deg or 25 deg rhombic inserts, with channels for high pressure coolant | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
1.847
