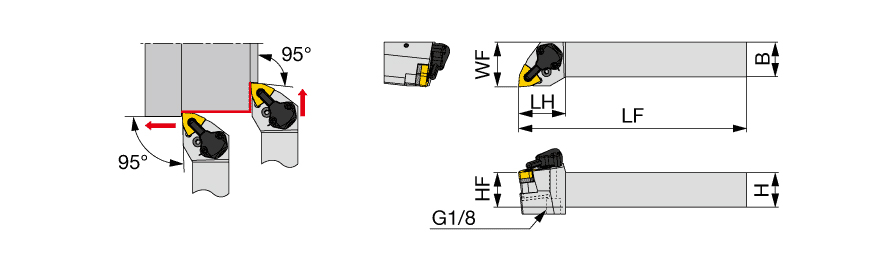

PWLNL164-CHP
Turning Toolholder; 6″ OAL × 1″ Shank Height × 1″ Shank Width × 1.344″ LH ; Left Hand ; Steel
| Shank Height (H) | 1″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 1″ | Master Insert Identification (MIID) | WNMG432 |
| Overall Length (OAL) | 6″ | Application | | For 80deg Trigon insert | |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.344″ | Measurement Type | Inch |
| Functional Width (WF) | 1-1/4″ |
Product Features

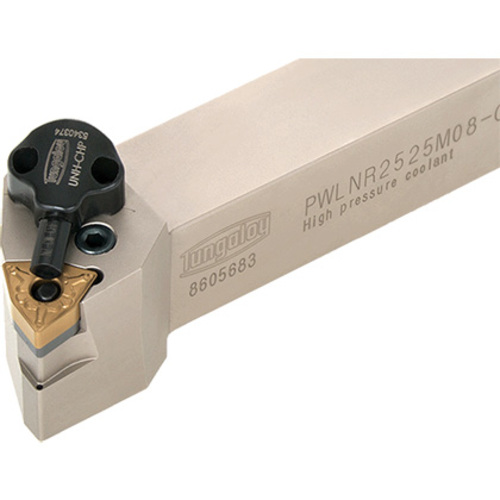

| Family Description | Lever lock type toolholder with 95 deg approach angle, for negative 80 deg trigon inserts, with channels for high pressure coolant | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
