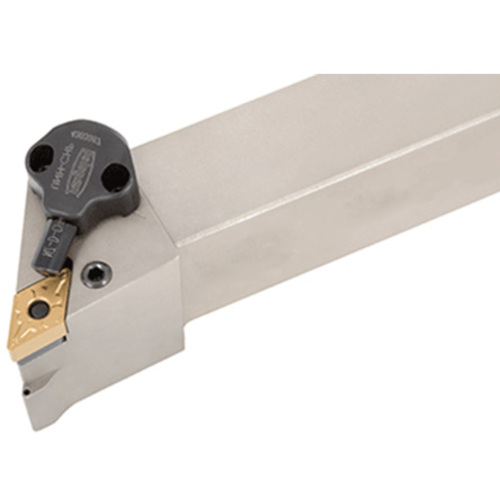

PDJNL1233-CHP
Turning Toolholder; 4-1/2″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 1.42″ LH ; Left Hand ; Steel

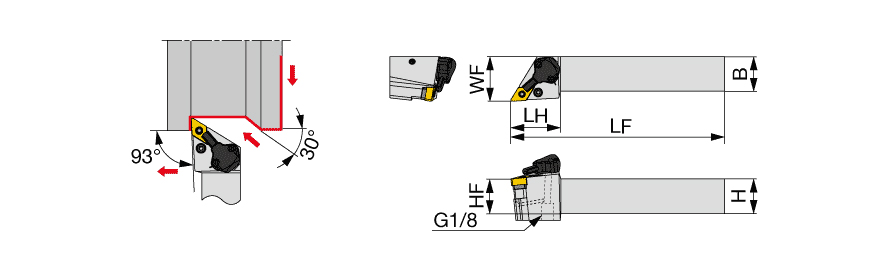

| Shank Height (H) | 3/4″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 3/4″ | Master Insert Identification (MIID) | DNMG332 |
| Overall Length (OAL) | 4-1/2″ | Application | | For 55deg Rhombic insert | |
| Functional Length (LF) | 4-1/2″ | Body Material | Steel |
| Head Length (LH) | 1.42″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1-1/4″ | Measurement Type | Inch |
Product Features
| Family Description | Lever lock type toolholder with 93 deg approach angle, for negative 55 deg rhombic inserts DN**33..., with channels for high pressure coolant | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
1.038
