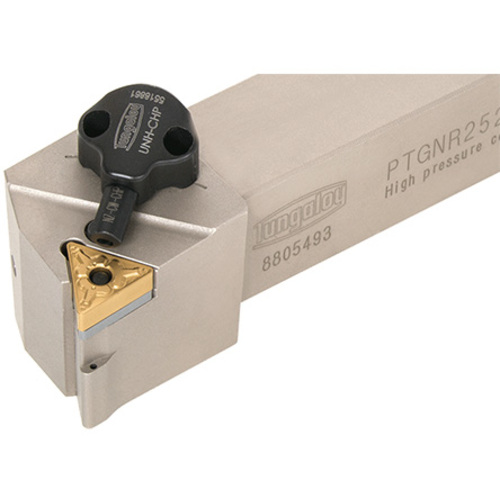

PTGNR2020K16-CHP

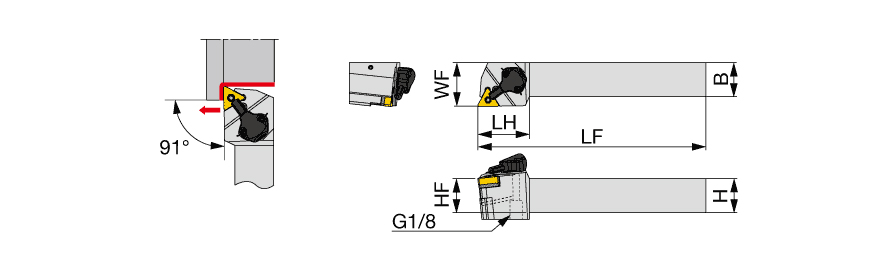

Turning Toolholder; 125 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 38 mm LH ; Right Hand ; Steel
| Shank Height (H) | 20 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 20 mm | Master Insert Identification (MIID) | TNMG160408 |
| Overall Length (OAL) | 125 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 38 mm | Measurement Type | Metric |
| Functional Width (WF) | 32 mm |
Product Features
| Family Description | Lever lock type toolholder with 91 deg approach angle, for negative triangle inserts TN**1604..., with channels for high pressure coolant | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
1.316
