AVQNR2020K1204-A
Turning Toolholder; 125 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 32 mm LH ; Right Hand ; Steel

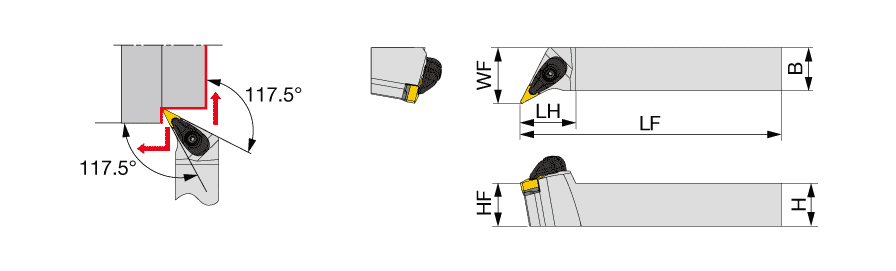

| Shank Height (H) | 20 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 20 mm | Master Insert Identification (MIID) | VNMG120408E |
| Overall Length (OAL) | 125 mm | Application | | For 35deg Rhombic insert | |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 32 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 25 mm | Measurement Type | Metric |
Product Features
| Family Description | Double-clamp toolholders with 117.5deg approach angle for negative 35deg rhombic inserts VN**1204... | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.946
