C6PCMNN00130-12-CHP

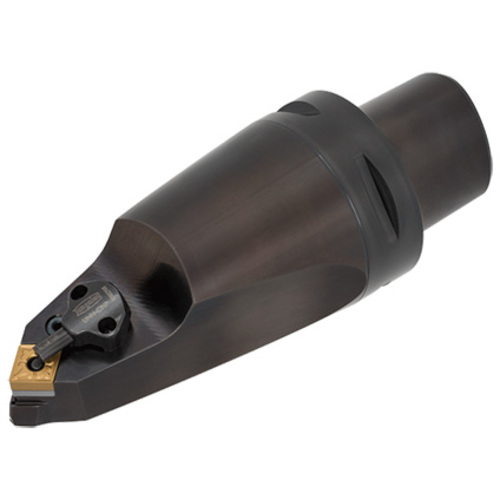

Turning Toolholder; 6.614″ OAL × 2.48″ Shank Dia. ; Neutral ; Steel

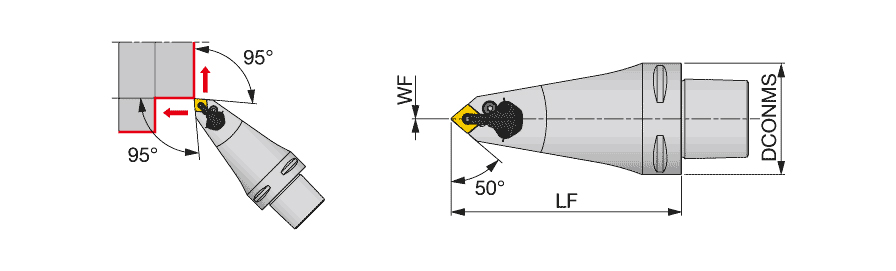

| Overall Length (OAL) | 6.614″ | Master Insert Identification (MIID) | CNMG432 |
| Functional Length (LF) | 5.118″ | Application | | Face contact interface | For 80deg Rhombic insert | |
| Functional Width (WF) | 0″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | Lever lock type toolholder with 50 deg approach angle, with channels for high pressure coolant | Country of Origin | JAPAN |
| Remarks | Applicable for 14 MPa coolant. Cannot be used for boring. |
Shipping Info
Package Weight
5.512
