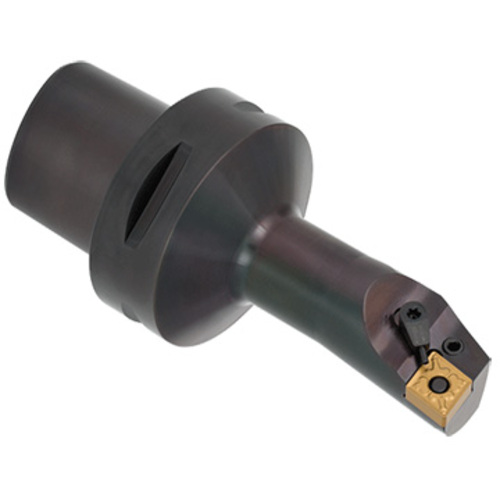

C6PCLNL17100-12-CHP
Turning Toolholder; 5.433″ OAL × 2.48″ Shank Dia. ; Left Hand ; Steel

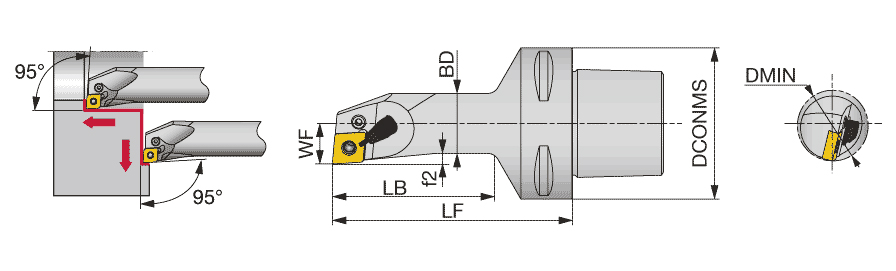

| Overall Length (OAL) | 5.433″ | Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 3.937″ | Master Insert Identification (MIID) | CNMG432 |
| Functional Width (WF) | 0.669″ | Application | | Face contact interface | For 80deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.26″ | Measurement Type | Inch |
Product Features
| Family Description | Lever lock type boring bar with 95 deg approach angle, with channels for high pressure coolant | Country of Origin | Japan |
| Remarks | Applicable for 14 MPa pressure coolant |
Shipping Info
Package Weight
0.915
