C6PDMNL00130-1104-CHP

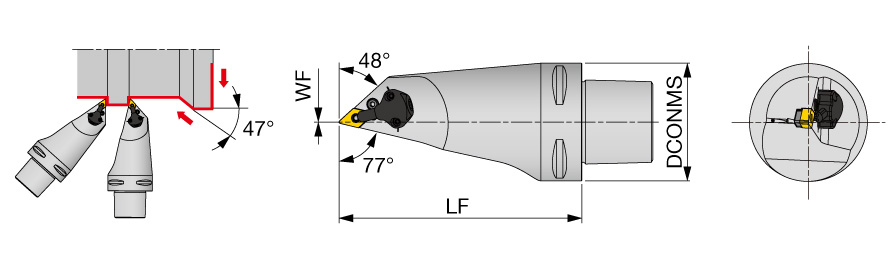

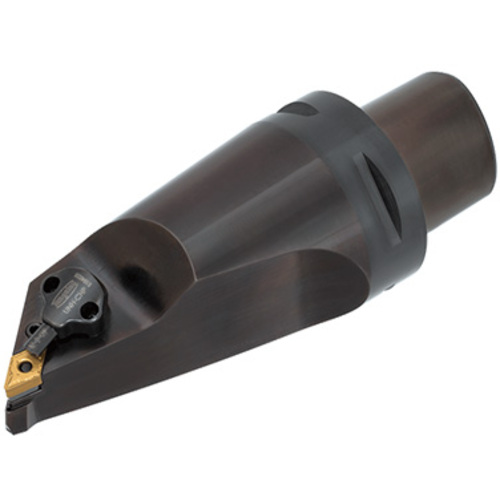

Turning Toolholder; 6.614″ OAL × 2.48″ Shank Dia. ; Left Hand ; Steel
| Overall Length (OAL) | 6.614″ | Master Insert Identification (MIID) | DNMG332 |
| Functional Length (LF) | 5.118″ | Application | | Face contact interface | For 55deg Rhombic insert | |
| Functional Width (WF) | 0″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Lever lock type toolholder with 48 deg approach angle, with channels for high pressure coolant | Country of Origin | Japan |
| Remarks | Applicable for 14 MPa coolant. Cannot be used for boring. |
Shipping Info
Package Weight
0.915
