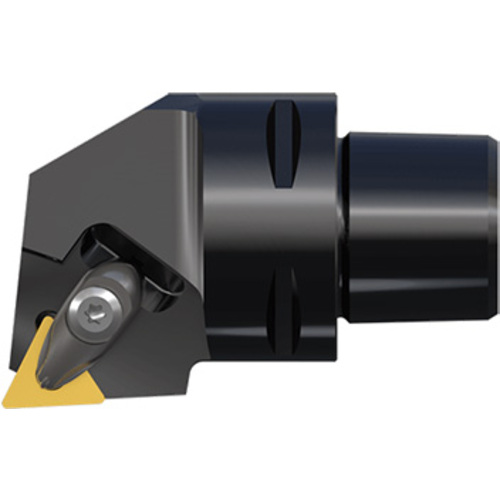

C4ATJNL27050-16N
Turning Toolholder; 2.914″ OAL × 1.575″ Shank Dia. ; Left Hand ; Steel

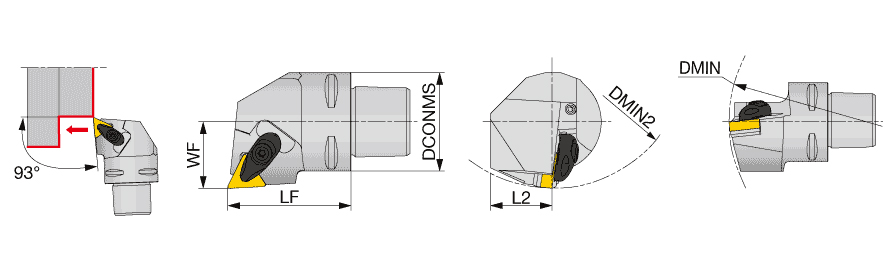

| Overall Length (OAL) | 2.914″ | Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 1.969″ | Master Insert Identification (MIID) | TNMG232 |
| Functional Width (WF) | 1.063″ | Application | | Face contact interface | For Triangular insert | |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 5-1/2″ | Measurement Type | Inch |
Product Features
| Family Description | TungCap Double-clamp toolholder with 93 deg approach angle, for negative 60 deg triangle inserts | Country of Origin | JAPAN |
| Remarks | Applicable for 7 MPa coolant |
