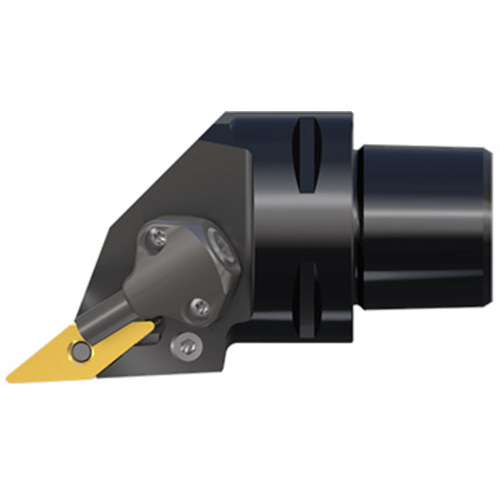

C4PVJNL27060-16-CHP
Turning Toolholder; 3.307″ OAL × 1.575″ Shank Dia. ; Left Hand ; Steel

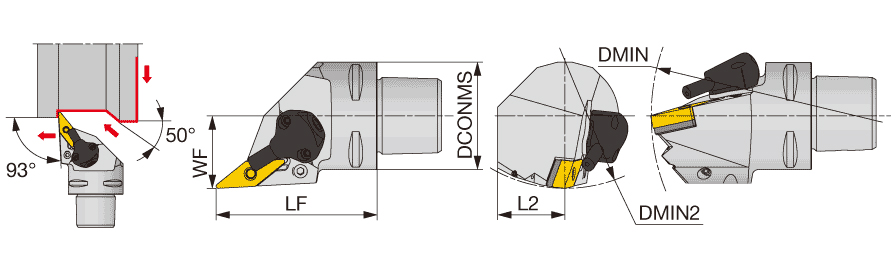

| Overall Length (OAL) | 3.307″ | Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 2.362″ | Master Insert Identification (MIID) | VNMG332 |
| Functional Width (WF) | 1.063″ | Application | | Face contact interface | For 35deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 5-1/2″ | Measurement Type | Inch |
Product Features
| Family Description | Lever lock type toolholder with 93 deg approach angle, with channels for high pressure coolant | Country of Origin | JAPAN |
| Remarks | Applicable for 14 MPa coolant |
Shipping Info
Package Weight
1.299
