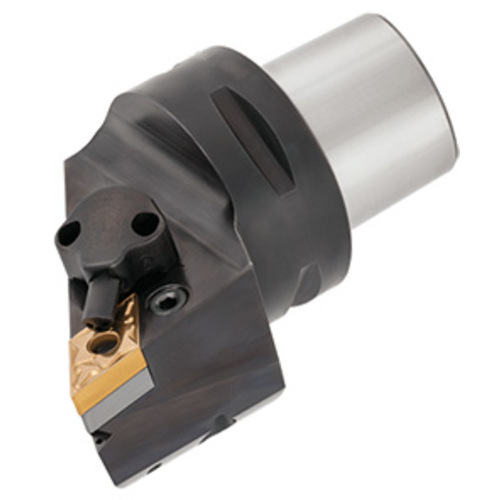

C6PDJNR45065-15-CHP
Turning Toolholder; 4.055″ OAL × 2.48″ Shank Dia. ; Right Hand ; Steel

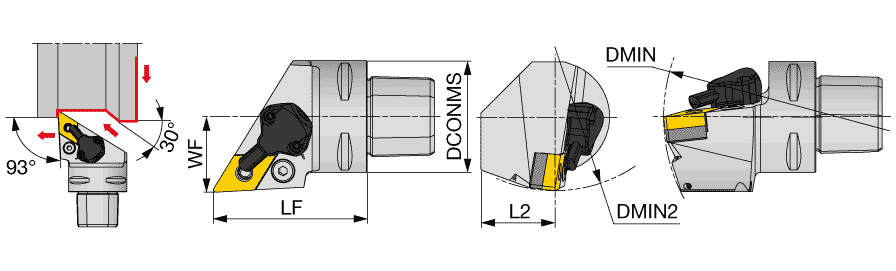

| Overall Length (OAL) | 4.055″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 2.559″ | Master Insert Identification (MIID) | DNMG432 |
| Functional Width (WF) | 1.772″ | Application | | Face contact interface | For 55deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 7.7″ | Measurement Type | Inch |
Product Features
| Family Description | Lever lock type toolholder with 93 deg approach angle, with channels for high pressure coolant | Country of Origin | JAPAN |
| Remarks | Applicable for 14 MPa coolant. Optional parts for C*PDJN****** 15 CHP: LSD42A (Shim for DN**1506...), LSP4S (Spring pin for DN**1506...) |
Shipping Info
Package Weight
2.912
