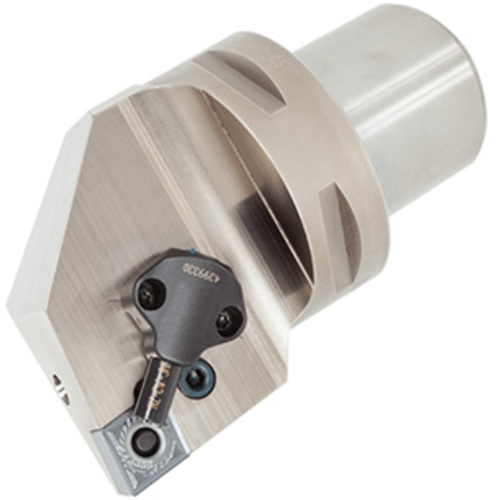

C6PCLNR45065-0904-CHP
Turning Toolholder; 4.055″ OAL × 2.48″ Shank Dia. ; Right Hand ; Steel

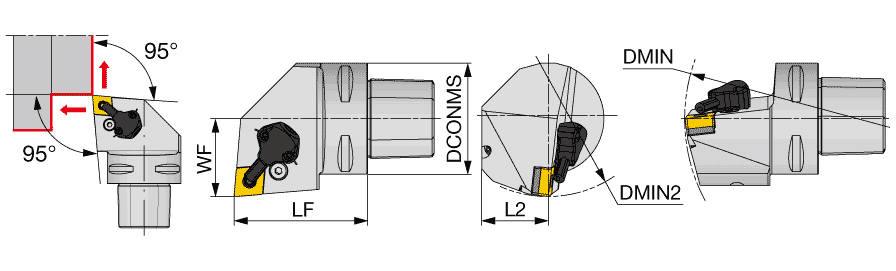

| Overall Length (OAL) | 4.055″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 2.559″ | Master Insert Identification (MIID) | CNMG332E |
| Functional Width (WF) | 1.772″ | Application | | Face contact interface | For 80deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 7.677″ | Measurement Type | Inch |
Product Features
| Family Description | Lever lock type toolholder with 95 deg approach angle, with channels for high pressure coolant | Country of Origin | JAPAN |
| Remarks | Applicable for 14 MPa coolant |
Shipping Info
Package Weight
0.000
