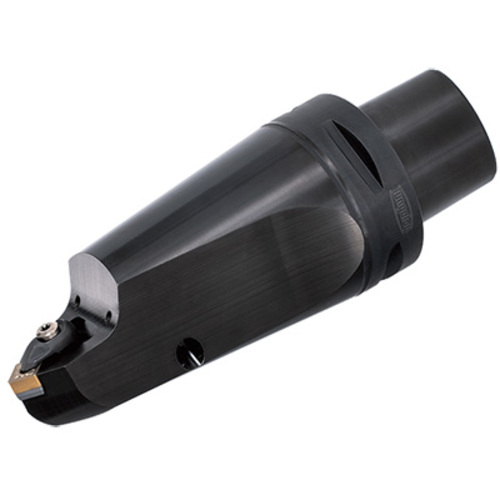

C6ACMNN00100-12N
Turning Toolholder; 5.433″ OAL × 2.48″ Shank Dia. ; Neutral ; Steel

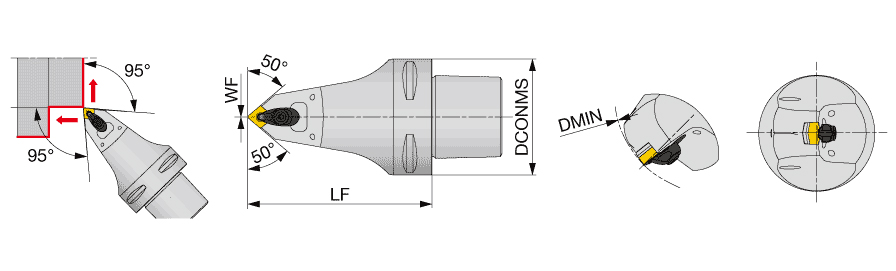

| Overall Length (OAL) | 5.433″ | Cutting Direction (HAND) | Neutral |
| Functional Length (LF) | 3.937″ | Master Insert Identification (MIID) | CNMG432 |
| Functional Width (WF) | 0″ | Application | | Face contact interface | For 80deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 4.3″ | Measurement Type | Inch |
Product Features
| Family Description | TungCap Double-clamp toolholder with 50 deg approach angle, for negative 80 deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | Applicable for 7 MPa coolant |
Shipping Info
Package Weight
3.880
