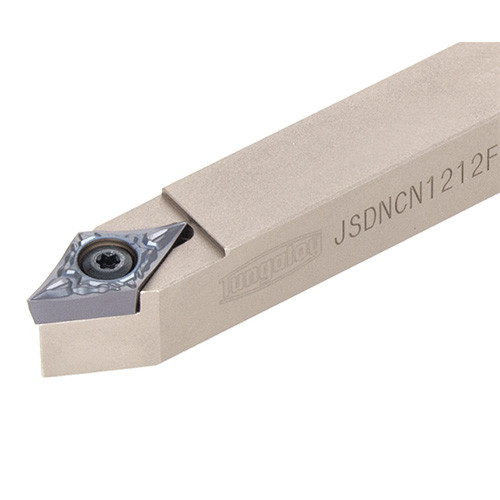

JSDNCN1212F07
Turning Toolholder; 85 mm OAL × 12 mm Shank Height × 12 mm Shank Width × 15 mm LH ; Neutral ; Steel

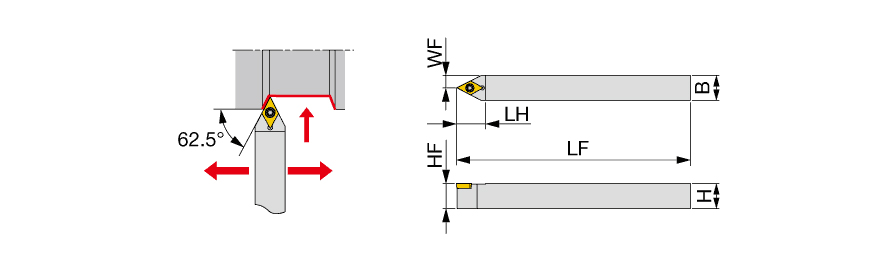

| Shank Height (H) | 12 mm | Cutting Direction (HAND) | Neutral |
| Shank Width (B) | 12 mm | Master Insert Identification (MIID) | DCGT070202 |
| Overall Length (OAL) | 85 mm | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 85 mm | Body Material | Steel |
| Head Length (LH) | 15 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 6 mm | Measurement Type | Metric |
Product Features
| Family Description | Screw-on clamp toolholder with 62.5deg approach angle, for positive 55deg rhombic inserts | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.269
