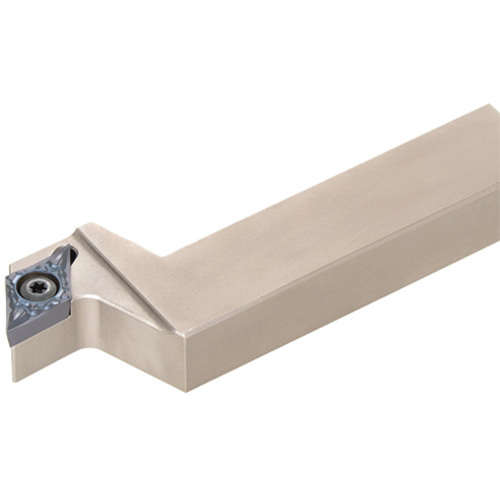

JSDJCR1620X11-F15
Turning Toolholder; 120 mm OAL × 16 mm Shank Height × 20 mm Shank Width × 12.5 mm LH ; Right Hand ; Steel

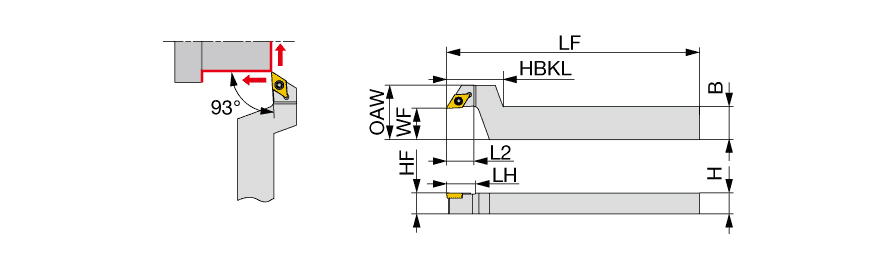

| Shank Height (H) | 16 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 20 mm | Master Insert Identification (MIID) | DCGT11T302 |
| Overall Length (OAL) | 120 mm | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 120 mm | Body Material | Steel |
| Head Length (LH) | 12.5 mm | Measurement Type | Metric |
| Functional Width (WF) | 15 mm |
Product Features
| Family Description | Screw-on stepped-head toolholder with 93deg approach angle for positive 55deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.694
