JSDJXR102-F10

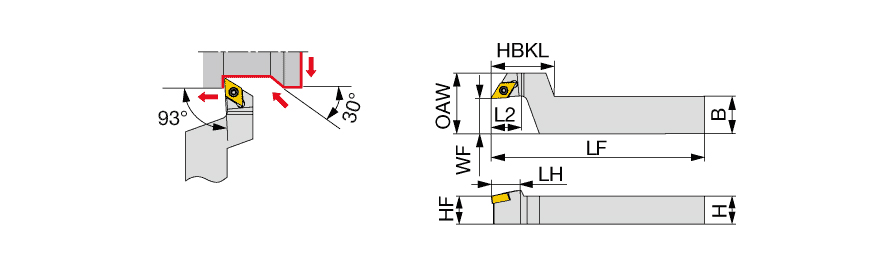

Turning Toolholder; 4-3/4″ OAL × 5/8″ Shank Height × 3/4″ Shank Width × 1/2″ LH ; Right Hand ; Steel
| Shank Height (H) | 5/8″ | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 3/4″ | Master Insert Identification (MIID) | DXGU220.5L |
| Overall Length (OAL) | 4-3/4″ | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 4-3/4″ | Body Material | Steel |
| Head Length (LH) | 1/2″ | Measurement Type | Inch |
| Functional Width (WF) | 5/8″ |
Product Features
| Family Description | Stepped-head type Screw-on toolholder with 93deg approach angle for DX*U inserts | Country of Origin | JAPAN |
| Remarks | Right hand toolholders (R) are used with left hand inserts (L). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.666
