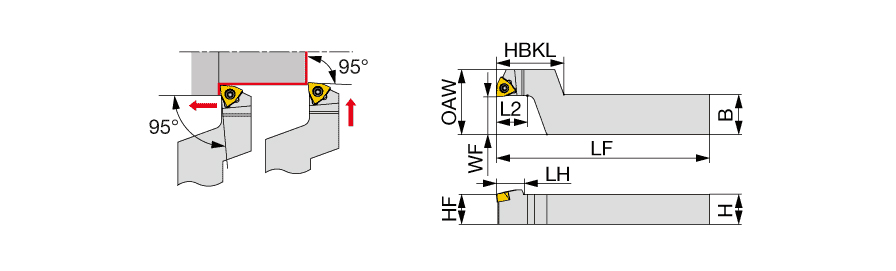

JSWLXR1620X04-F15
Turning Toolholder; 120 mm OAL × 16 mm Shank Height × 20 mm Shank Width × 12 mm LH ; Right Hand ; Steel
| Shank Height (H) | 16 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 20 mm | Master Insert Identification (MIID) | WXGU040302L |
| Overall Length (OAL) | 120 mm | Application | | For 80deg Trigon insert | For Miniature machining | |
| Functional Length (LF) | 120 mm | Body Material | Steel |
| Head Length (LH) | 12 mm | Measurement Type | Metric |
| Functional Width (WF) | 15 mm |
Product Features
| Family Description | Stepped-head type Screw-on toolholder with 95deg approach angle, for WXG* inserts | Country of Origin | JAPAN |
| Remarks | Right hand toolholders (R) are used with left hand inserts (L). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.701
