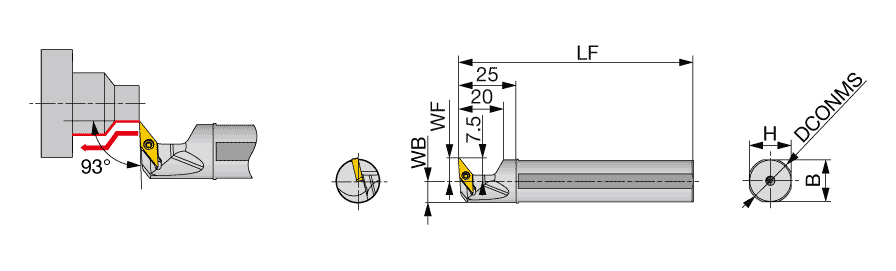

JS22X-SVUXL09
Turning Toolholder; 120 mm OAL × 21 mm Shank Height × 21 mm Shank Width × 22 mm Shank Dia. × 25 mm LH ; Left Hand ; Steel
| Shank Height (H) | 21 mm | Connection Diameter Machine Side (DCONMS) | 22 mm |
| Shank Width (B) | 21 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 120 mm | Master Insert Identification (MIID) | VXGU09T202MFL |
| Functional Length (LF) | 120 mm | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Head Length (LH) | 25 mm | Body Material | Steel |
| Functional Width (WF) | 10 mm | Measurement Type | Metric |
Product Features
| Family Description | Screw-on toolholder with 93deg approach angle, for 35deg rhombic insert with 4 edges | Country of Origin | JAPAN |
| Remarks | Left hand toolholders (L) are used with left hand inserts (L). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.783
