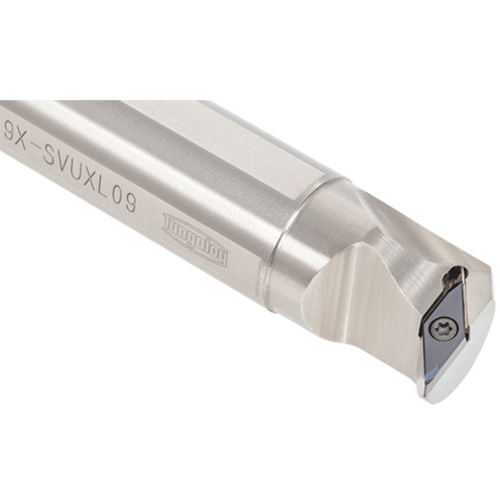

JS19G-SVUXL09

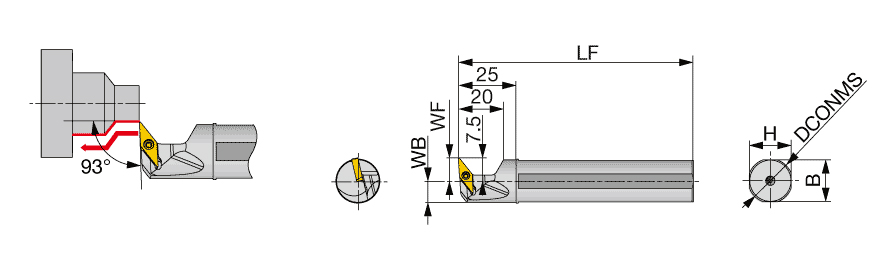

Turning Toolholder; 3.543″ OAL × 0.709″ Shank Height × 0.709″ Shank Width × 3/4″ Shank Dia. × 0.984″ LH ; Left Hand ; Steel
| Shank Height (H) | 0.709″ | Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Shank Width (B) | 0.709″ | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 3.543″ | Master Insert Identification (MIID) | VXGU73.50.5MFL |
| Functional Length (LF) | 3.543″ | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Head Length (LH) | 0.984″ | Body Material | Steel |
| Functional Width (WF) | 0.394″ | Measurement Type | Inch |
Product Features
| Family Description | Screw-on toolholder with 93deg approach angle, for 35deg rhombic insert with 4 edges | Country of Origin | JAPAN |
| Remarks | Left hand toolholders (L) are used with left hand inserts (L). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.467
