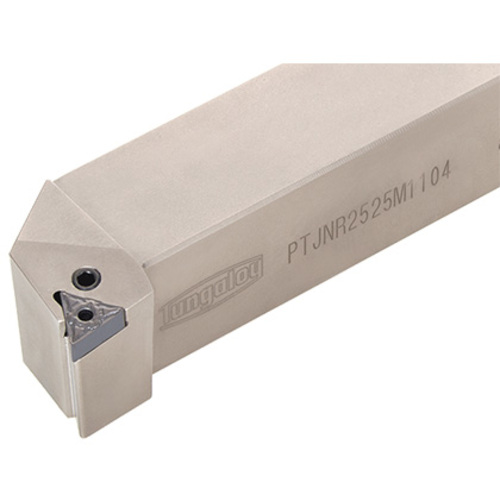

PTJNR2525M1104
Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 18 mm LH ; Right Hand ; Steel

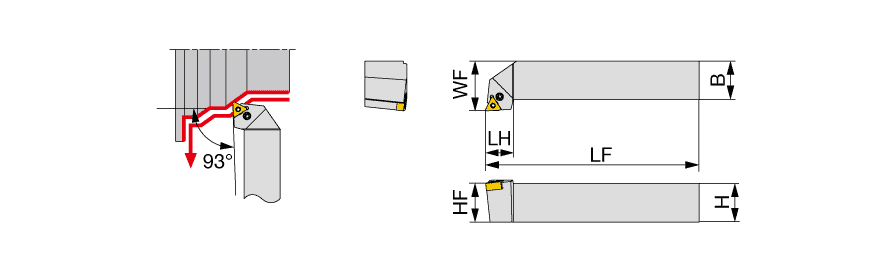

| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | TNMG110408E |
| Overall Length (OAL) | 150 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 18 mm | Tool Type | TOOLHOLDERS - FOR EXTERNAL TURNING |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
Product Features
| Family Description | Lever lock type toolholder with 93deg approach angle, for negative triangle inserts TN**1104... | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
1.627
