ADQNR2525M1104-A

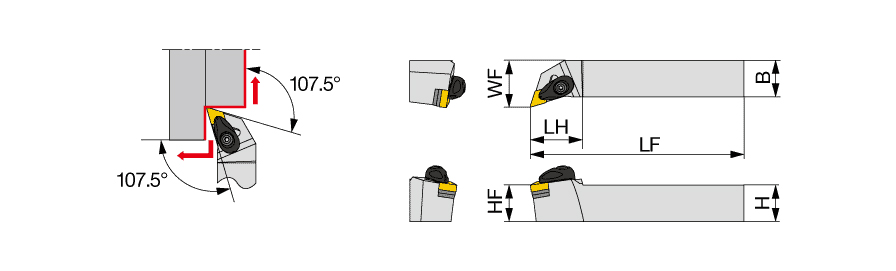

Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 30 mm LH ; Right Hand ; Steel
| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | DNMG110408 |
| Overall Length (OAL) | 150 mm | Application | | For 55deg Rhombic insert | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 30 mm | Measurement Type | Metric |
| Functional Width (WF) | 32 mm |
Product Features
| Family Description | Double-clamp toolholder with 107.5deg approach angle, for negative 55deg rhombic inserts DN**1104... | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
1.601
