C4ADUNR20070-15

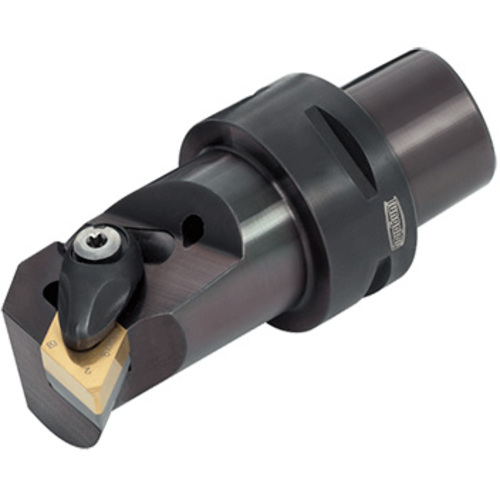

Turning Toolholder; 3.701″ OAL × 1.575″ Shank Dia. ; Right Hand ; Steel

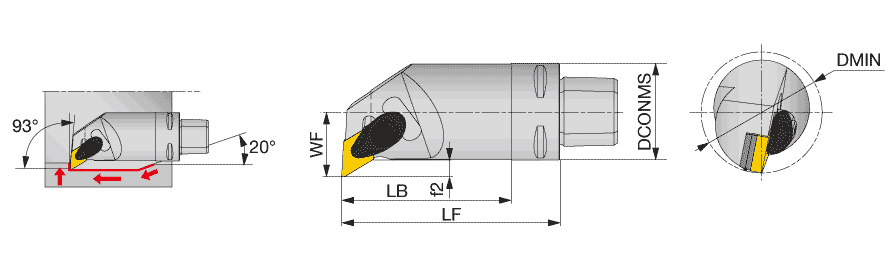

| Overall Length (OAL) | 3.701″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 2.756″ | Master Insert Identification (MIID) | DNMG432 |
| Functional Width (WF) | 0.787″ | Application | | Face contact interface | For 55deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.496″ | Measurement Type | Inch |
Product Features
| Family Description | TungCap Double-clamp boring bar for negative 55 deg rhombic inserts | Country of Origin | Japan |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (ADUNL** type), and the left hand insert (L) is used for the right hand toolholders (ADUNR** type). Applicable for 7 MPa pressure coolant Option : ASD423 (Shim for DN**1506...) |
Shipping Info
Package Weight
1.297
