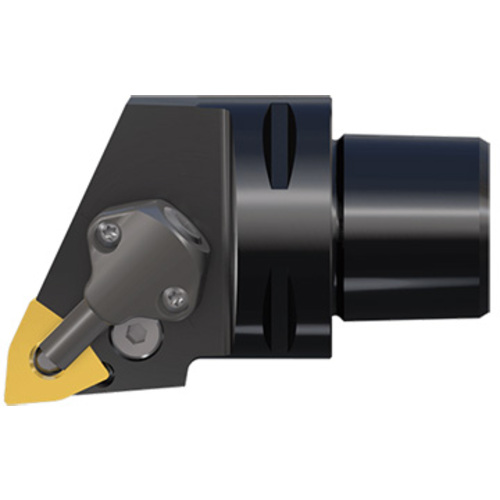

C4PWLNL27050-08-CHP
Turning Toolholder; 2.914″ OAL × 1.575″ Shank Dia. ; Left Hand ; Steel

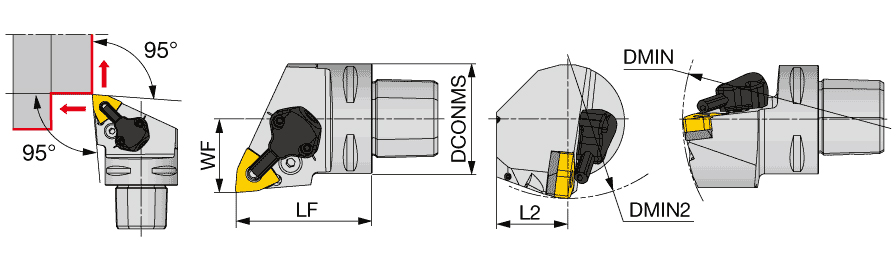

| Overall Length (OAL) | 2.914″ | Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 1.969″ | Master Insert Identification (MIID) | WNMG432 |
| Functional Width (WF) | 1.063″ | Application | | Face contact interface | For 80deg Trigon insert | |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 5-1/2″ | Measurement Type | Inch |
Product Features
| Family Description | Lever lock type toolholder with 95 deg approach angle, with channels for high pressure coolant | Country of Origin | Japan |
| Remarks | Applicable for 14 MPa coolant |
Shipping Info
Package Weight
541
