JSDJ2CL082-CHP

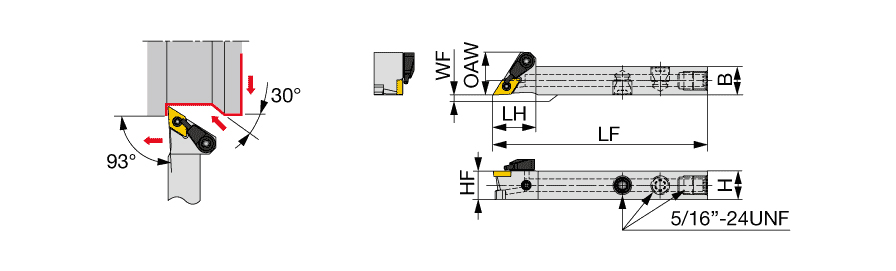

Turning Toolholder; 3.344″ OAL × 1/2″ Shank Height × 1/2″ Shank Width × 0.71″ LH ; Left Hand ; Steel
| Shank Height (H) | 1/2″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 1/2″ | Master Insert Identification (MIID) | DCGT21.50.5 |
| Overall Length (OAL) | 3.344″ | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 3.344″ | Body Material | Steel |
| Head Length (LH) | 0.71″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 0″ | Measurement Type | Inch |
Product Features
| Family Description | No-offset Screw-on toolholder for positive 55 deg rhombic inserts, with channels for high pressure coolant | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.265
