PDJNL164-CHP

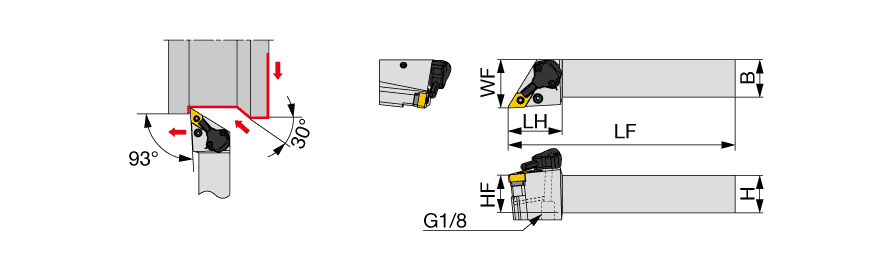

Turning Toolholder; 6″ OAL × 1″ Shank Height × 1″ Shank Width × 1.42″ LH ; Left Hand ; Steel
| Shank Height (H) | 1″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 1″ | Master Insert Identification (MIID) | DNMG432 |
| Overall Length (OAL) | 6″ | Application | | For 55deg Rhombic insert | |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.42″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1-1/4″ | Measurement Type | Inch |
Product Features

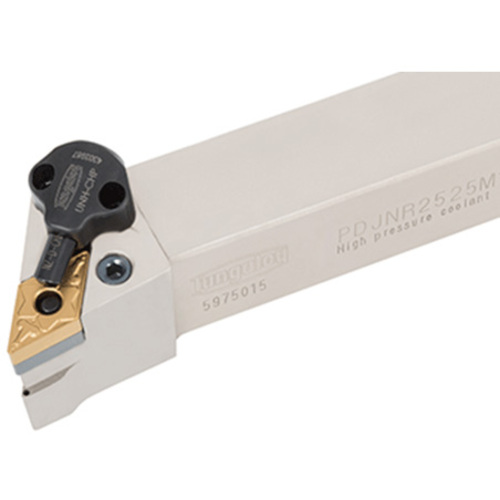

| Family Description | Lever lock type toolholder for negative 55 deg rhombic inserts, with channels for high pressure coolant | Country of Origin | JAPAN |

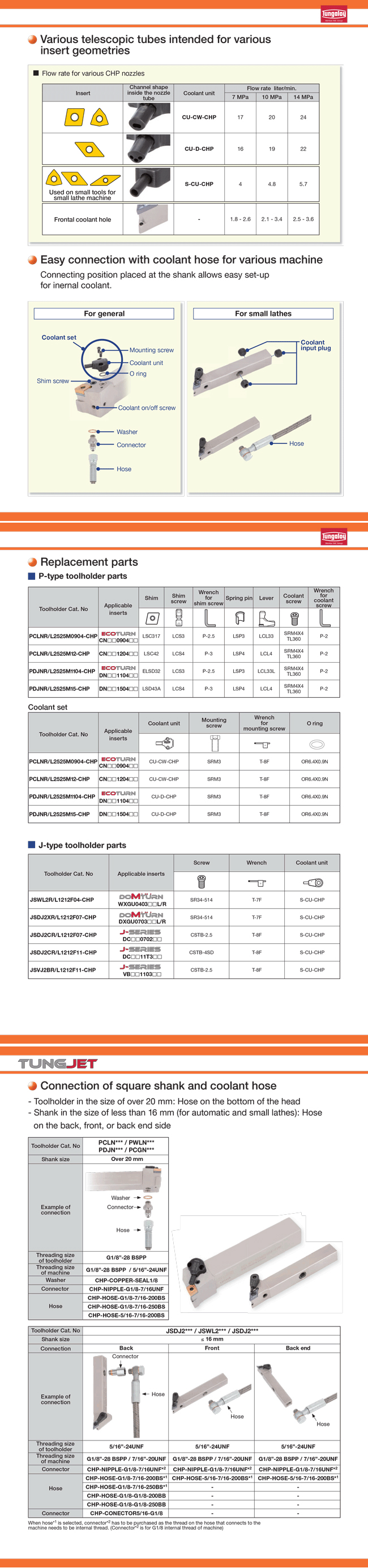

| Remarks | Torque: Recommended torque (Nm) for clamping. Option: LSD42A (Shim for DN**1506...), LSP4S (Spring pin for DN**1506...) |
Shipping Info
Package Weight
1.863
