PTL2NL2020H16
Turning Toolholder; 100 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 22 mm LH ; Left Hand ; Steel

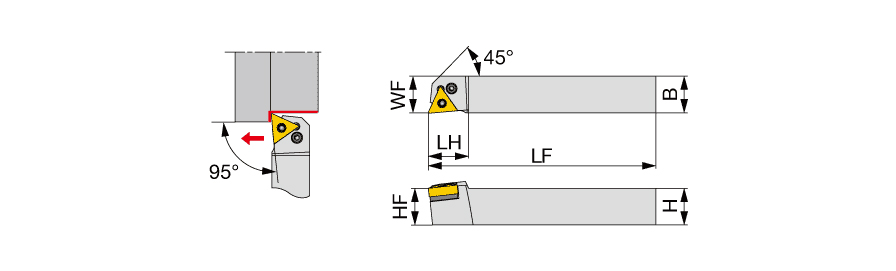

| Shank Height (H) | 20 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 20 mm | Master Insert Identification (MIID) | TNMG160404 |
| Overall Length (OAL) | 100 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 100 mm | Body Material | Steel |
| Head Length (LH) | 22 mm | Measurement Type | Metric |
| Functional Width (WF) | 20 mm |
Product Features
| Family Description | No-offset Lever-lock clamp toolholder with 95deg approach approach angle, for negative 60deg triangular inserts | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.723
