JSWL2XL1212F04-CHP
Turning Toolholder; 85 mm OAL × 12 mm Shank Height × 12 mm Shank Width × 18 mm LH ; Left Hand ; Steel

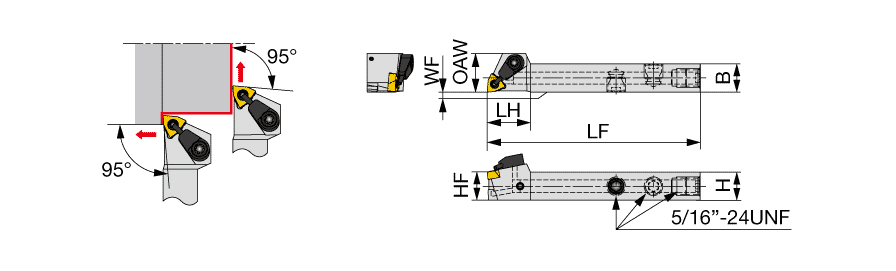

| Shank Height (H) | 12 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 12 mm | Master Insert Identification (MIID) | WXGU040302R |
| Overall Length (OAL) | 85 mm | Application | | For 80deg Trigon insert | For Miniature machining | |
| Functional Length (LF) | 85 mm | Body Material | Steel |
| Head Length (LH) | 18 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 0 mm | Measurement Type | Metric |
Product Features
| Family Description | No-offset Screw-on toolholder for WXG* inserts, with channels for high pressure coolant | Country of Origin | JAPAN |
| Remarks | Right hand toolholders (R) are used with left hand inserts (L). Left hand toolholders (L) are used with right hand inserts (R). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.258
