JS254X-SDUXL07

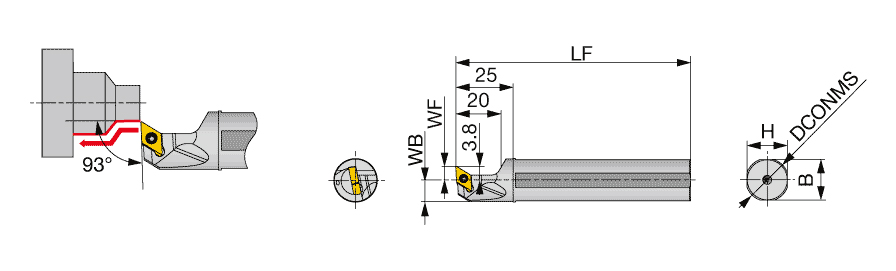

Turning Toolholder; 4.724″ OAL × 0.945″ Shank Height × 0.945″ Shank Width × 1″ Shank Dia. × 0.984″ LH ; Left Hand ; Steel
| Shank Height (H) | 0.945″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 0.945″ | Master Insert Identification (MIID) | DXGU220.5L |
| Overall Length (OAL) | 4.724″ | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 4.724″ | Body Material | Steel |
| Head Length (LH) | 0.984″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 0.394″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ |
Product Features
| Family Description | Screw-on toolholder with 93deg approach angle, for 55deg rhombic insert with 4 edges | Country of Origin | JAPAN |
| Remarks | Left hand toolholders (L) are used with left hand inserts (L). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
1.010
