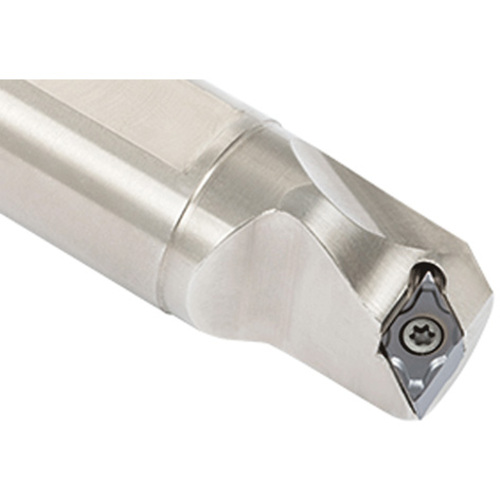

JS25H-SDUXL07
Turning Toolholder; 100 mm OAL × 24 mm Shank Height × 24 mm Shank Width × 25 mm Shank Dia. × 25 mm LH ; Left Hand ; Steel

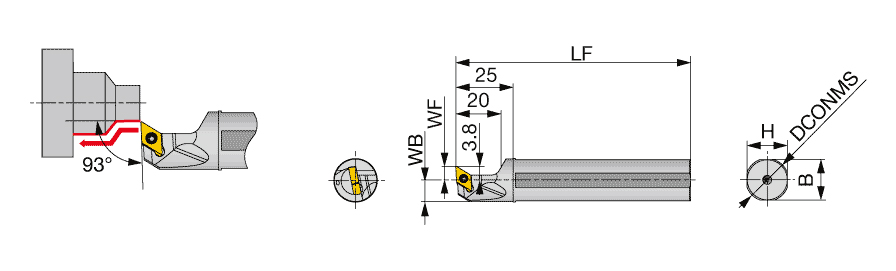

| Shank Height (H) | 24 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 24 mm | Master Insert Identification (MIID) | DXGU070302L |
| Overall Length (OAL) | 100 mm | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 100 mm | Body Material | Steel |
| Head Length (LH) | 25 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 10 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
Product Features
| Family Description | Screw-on toolholder with 93deg approach angle, for 55deg rhombic insert with 4 edges | Country of Origin | JAPAN |
| Remarks | Left hand toolholders (L) are used with left hand inserts (L). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.825
