SRDCN2525M12-6F
Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 24.1 mm LH ; Neutral ; Steel

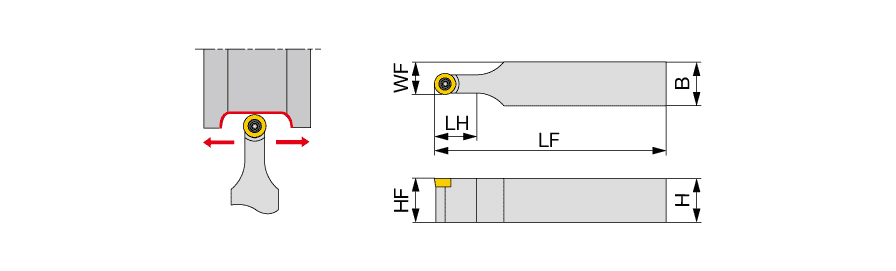

| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Neutral |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | RCMT1204M0 |
| Overall Length (OAL) | 150 mm | Application | | For Round insert | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 24.1 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 18.5 mm | Measurement Type | Metric |
Product Features
| Family Description | Screw-on toolholder with 45deg approach angle, for positive round inserts | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
1.523
