PDJNR2525M15-CHP

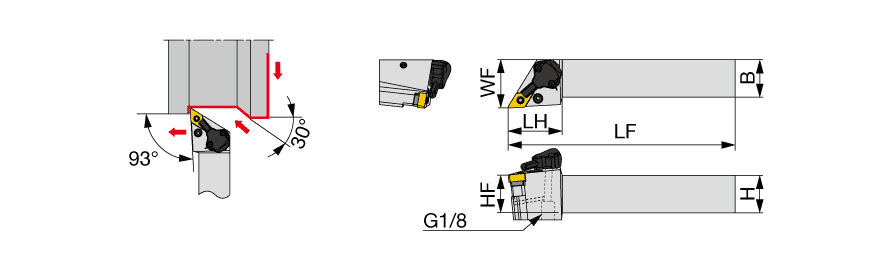

Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 36 mm LH ; Right Hand ; Steel
| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | DNMG150408 |
| Overall Length (OAL) | 150 mm | Application | | For 55deg Rhombic insert | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 36 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
Product Features
| Family Description | Lever lock type toolholder for negative 55 deg rhombic inserts, with channels for high pressure coolant | Country of Origin | JAPAN |

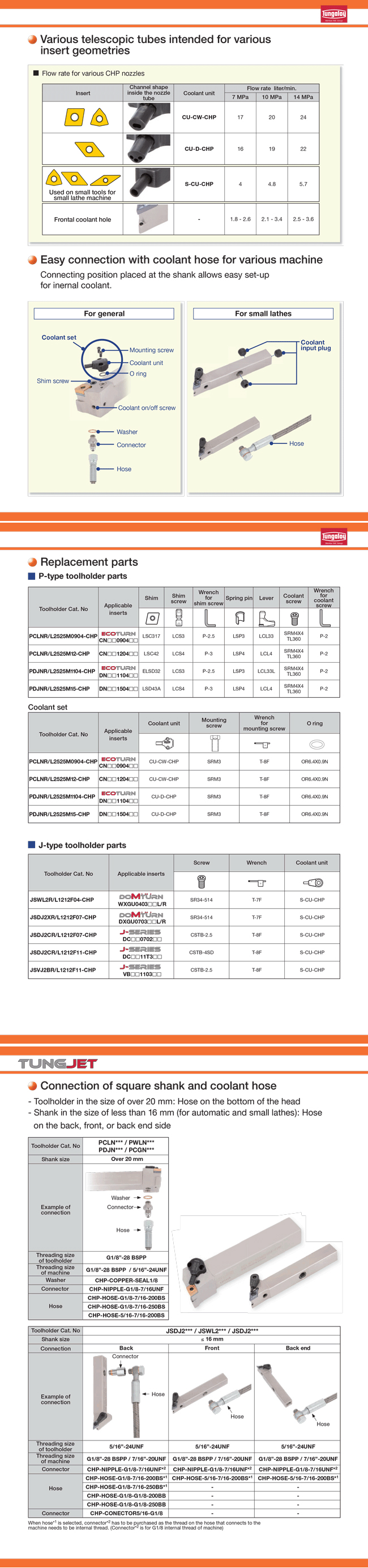

| Remarks | Torque: Recommended torque (Nm) for clamping. Option: LSD42A (Shim for DN**1506...), LSP4S (Spring pin for DN**1506...) |
Shipping Info
Package Weight
1.792
