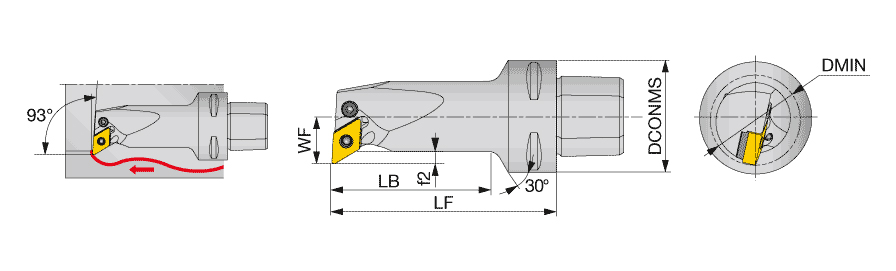

C4PDUNR17080-11

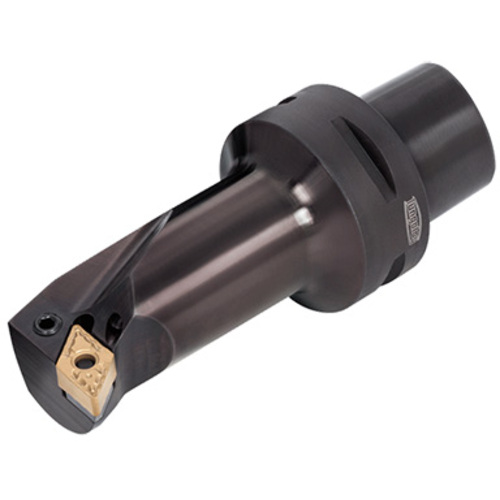

Turning Toolholder; 4.095″ OAL × 1.575″ Shank Dia. ; Right Hand ; Steel
| Overall Length (OAL) | 4.095″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 3.15″ | Master Insert Identification (MIID) | DNMG332 |
| Functional Width (WF) | 0.669″ | Application | | Face contact interface | For 55deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.26″ | Measurement Type | Inch |
Product Features
| Family Description | TungCap Lever lock type boring bar for negative 55 deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (PDUNL** type), and the left hand insert (L) is used for the right hand toolholders (PDUNR** type). Applicable for 7 MPa coolant |
Shipping Info
Package Weight
1.195
