JTTLNL1216F16

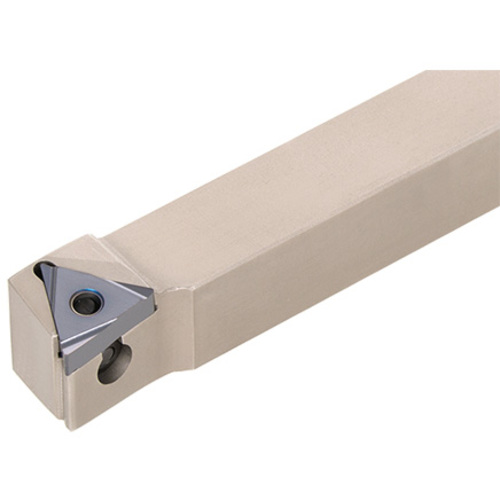

Turning Toolholder; 85 mm OAL × 12 mm Shank Height × 16 mm Shank Width × 17 mm LH ; Left Hand ; Steel

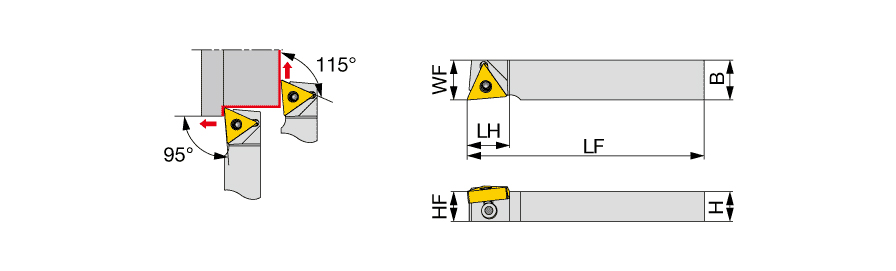

| Shank Height (H) | 12 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 16 mm | Master Insert Identification (MIID) | TNMG160404 |
| Overall Length (OAL) | 85 mm | Application | | For Miniature machining | For Triangular insert | |
| Functional Length (LF) | 85 mm | Body Material | Steel |
| Head Length (LH) | 17 mm | Measurement Type | Metric |
| Functional Width (WF) | 16 mm |
Product Features
| Family Description | No-offset back-clamp toolholder with 95deg approach angle, for negative 60deg triangular inserts | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.344
