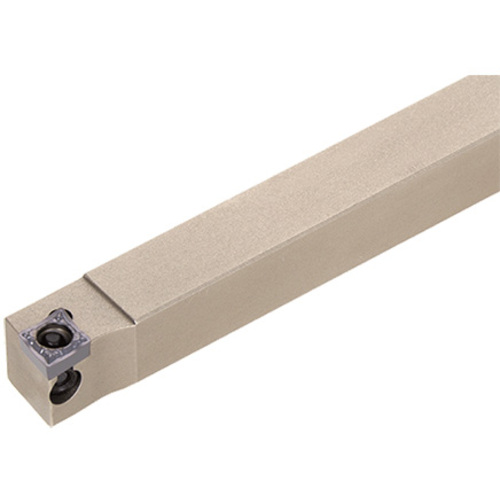

JTCL2CR1212F09
Turning Toolholder; 85 mm OAL × 12 mm Shank Height × 12 mm Shank Width × 16 mm LH ; Right Hand ; Steel
| Shank Height (H) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 12 mm | Master Insert Identification (MIID) | CCGT09T302 |
| Overall Length (OAL) | 85 mm | Application | | For 80deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 85 mm | Body Material | Steel |
| Head Length (LH) | 16 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 12 mm | Measurement Type | Metric |
Product Features
| Family Description | No-offset Back clamp toolholder with 95deg approach angle, for positive 80deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.278
