JSVJ2BL1010X11

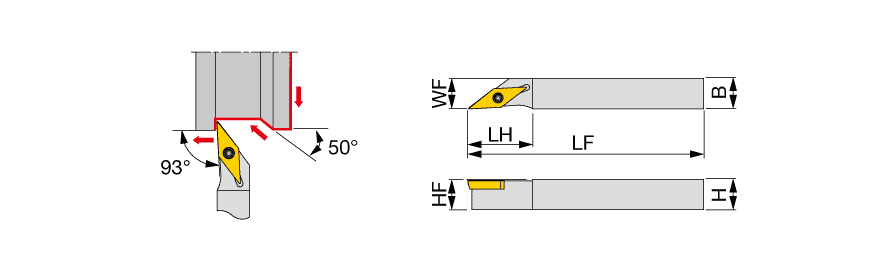

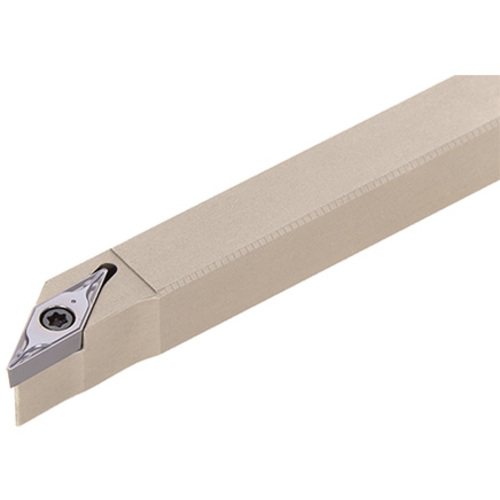

Turning Toolholder; 120 mm OAL × 10 mm Shank Height × 10 mm Shank Width × 21 mm LH ; Left Hand ; Steel
| Shank Height (H) | 10 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 10 mm | Master Insert Identification (MIID) | VBGT110302 |
| Overall Length (OAL) | 120 mm | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 120 mm | Body Material | Steel |
| Head Length (LH) | 21 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 10 mm | Measurement Type | Metric |
Product Features
| Family Description | No-offset Screw-on toolholder with 93deg approach angle, for positive 35deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.262
