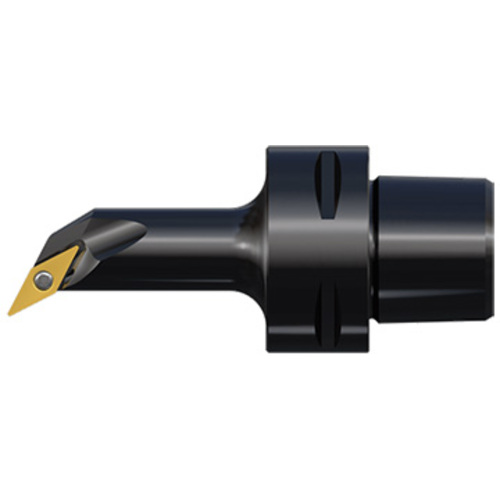

C4SVQBR18095-16
Turning Toolholder; 4.685″ OAL × 1.575″ Shank Dia. ; Right Hand ; Steel

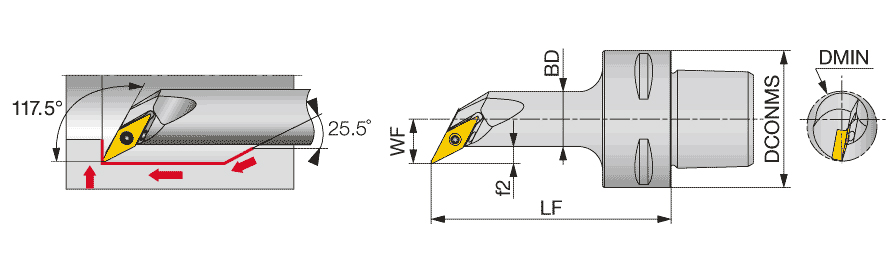

| Overall Length (OAL) | 4.685″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 3.74″ | Master Insert Identification (MIID) | VBMT332 |
| Functional Width (WF) | 0.689″ | Application | | Face contact interface | For 35deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.201″ | Measurement Type | Inch |
Product Features
| Family Description | Screw-on type boring bar with 117.5 deg approach angle, for negative 35 deg rhombic inserts | Country of Origin | Japan |
| Remarks | Right hand toolholders (R) are used with left hand inserts (L). Applicable for 7 MPa coolant |
