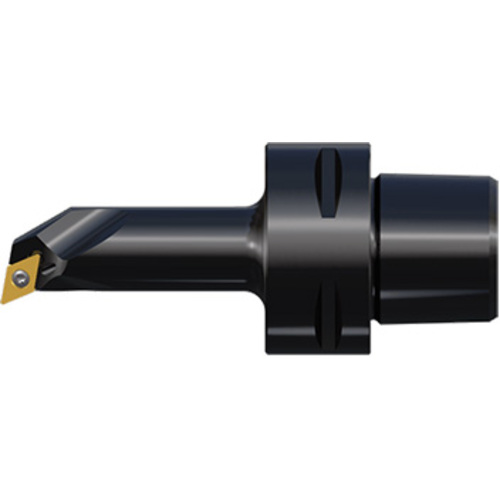

C4SDXXR13080-07
Turning Toolholder; 4.095″ OAL × 1.575″ Shank Dia. ; Right Hand ; Steel

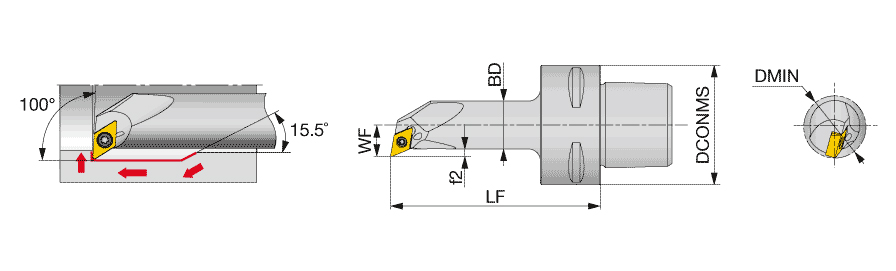

| Overall Length (OAL) | 4.095″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 3.15″ | Master Insert Identification (MIID) | DXGU221L |
| Functional Width (WF) | 0.496″ | Application | | Face contact interface | For 55deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.945″ | Measurement Type | Inch |
Product Features
| Family Description | Screw-on type boring bar with 100 deg approach angle, for negative 55 deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | Right hand toolholders (R) are used with left hand inserts (L). Applicable for 7 MPa coolant |
Shipping Info
Package Weight
1.087
